Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 26792-xx-xx.

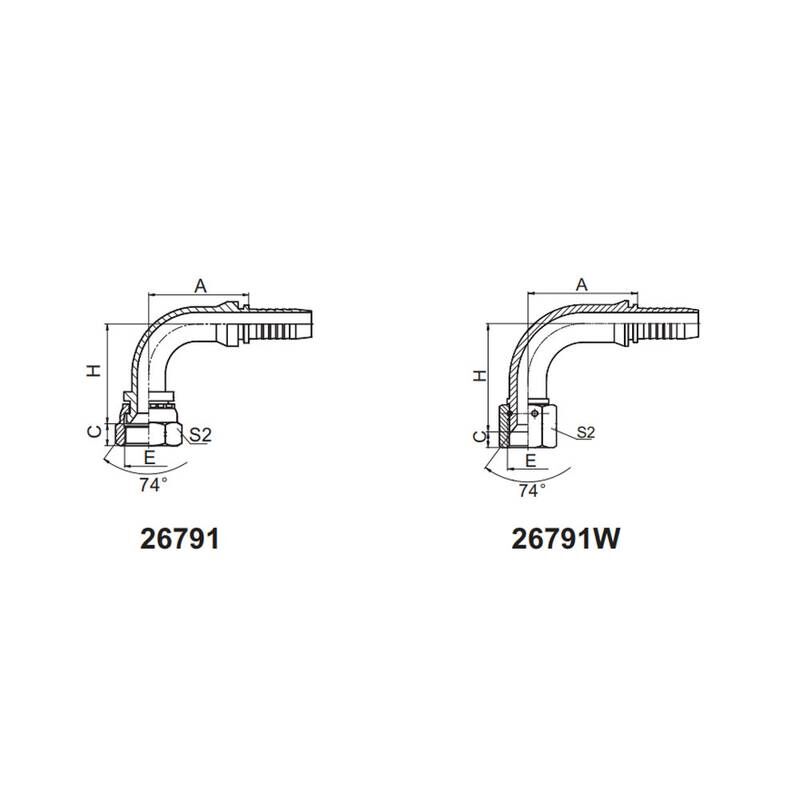

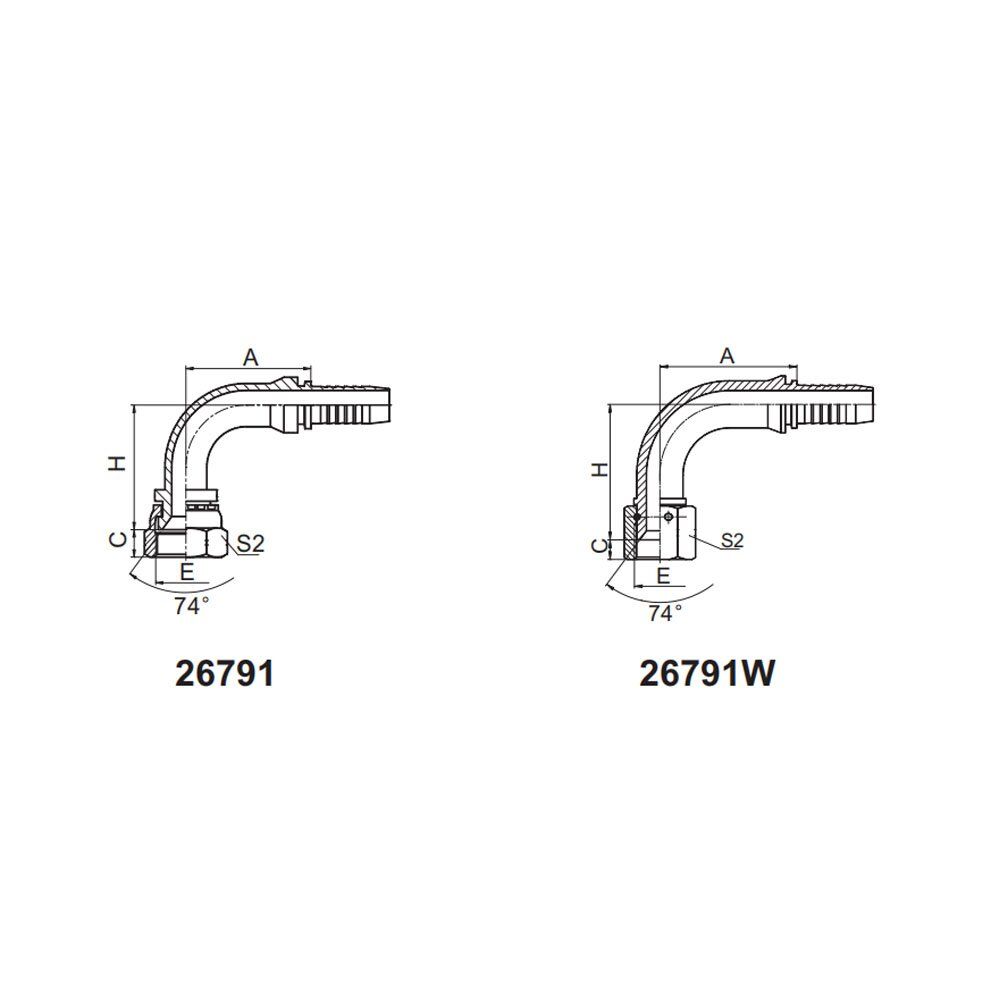

90° JIC FEMALE 74° CONE SEAT SAE J514
| PART NO. | THREAD | HOSE BORE | A | C | H | S2 | |
| DN | DASH | ||||||
| 26791-04-03 | 7/16″X20 | 5 | 03 | 26.5 | 9 | 30.5 | 15 |
| 26791-04-04 | 7/16″X20 | 6 | 04 | 30 | 9 | 33.5 | 15 |
| 26791-05-04 | 1/2″X20 | 6 | 04 | 30 | 9.5 | 34 | 17 |
| 26791-05-05 | 1/2″X20 | 8 | 05 | 33 | 9.5 | 37 | 17 |
| 26791-05-06 | 1/2″X20 | 10 | 06 | 35.3 | 9.5 | 39.3 | 17 |
| 26791-06-04 | 9/16″X18 | 6 | 04 | 30 | 10.5 | 34 | 19 |
| 26791-06-05 | 9/16″X18 | 8 | 05 | 33 | 10.5 | 37 | 19 |
| 26791-06-06 | 9/16″X18 | 10 | 06 | 35.3 | 10.5 | 39.3 | 19 |
| 26791-06-08 | 9/16″X18 | 12 | 08 | 35.8 | 10.5 | 39.8 | 19 |
| 26791-08-06 | 3/4″X16 | 10 | 06 | 35.3 | 11 | 41.3 | 24 |
| 26791-08-08 | 3/4″X16 | 12 | 08 | 41 | 11 | 47.5 | 24 |
| 26791-08-10 | 3/4″X16 | 16 | 10 | 49 | 11 | 47.5 | 24 |
| 26791-10-08 | 7/8″X14 | 12 | 08 | 41 | 13 | 48 | 27 |
| 26791-10-10 | 7/8″X14 | 16 | 10 | 56 | 13 | 52.5 | 27 |
| 26791-10-12 | 7/8″X14 | 20 | 12 | 64.9 | 13 | 62 | 27 |
| 26791-12-08 | 1.1/16″X12 | 12 | 08 | 41 | 15 | 49.5 | 32 |
| 26791-12-10 | 1.1/16″X12 | 16 | 10 | 56 | 15 | 54 | 32 |
| 26791-12-12 | 1.1/16″X12 | 20 | 12 | 65.5 | 15 | 63.5 | 32 |
| 26791-12-16 | 1.1/16″X12 | 25 | 16 | 74 | 15 | 63.5 | 32 |
| 26791-14-12 | 1.3/16″X12 | 20 | 12 | 65.5 | 15 | 63.5 | 32 |
| 26791-16-12 | 1.5/16″X12 | 20 | 12 | 65.5 | 16 | 63.5 | 41 |
| 26791-16-16 | 1.5/16″X12 | 25 | 16 | 76.7 | 16 | 70 | 41 |
| 26791-20-20W | 1.5/8″X12 | 32 | 20 | 91.5 | 17 | 80.5 | 50 |
| 26791-24-20T | 1.7/8″X12 | 32 | 20 | 91.5 | 20 | 80.5 | 55 |
| 26791-24-24W | 1.7/8″X12 | 40 | 24 | 109.4 | 20 | 94 | 55 |
| 26791-32-32W | 2.1/2″X12 | 50 | 32 | 133.1 | 23.5 | 121.8 | 75 |
