Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 87692-xx-xx.

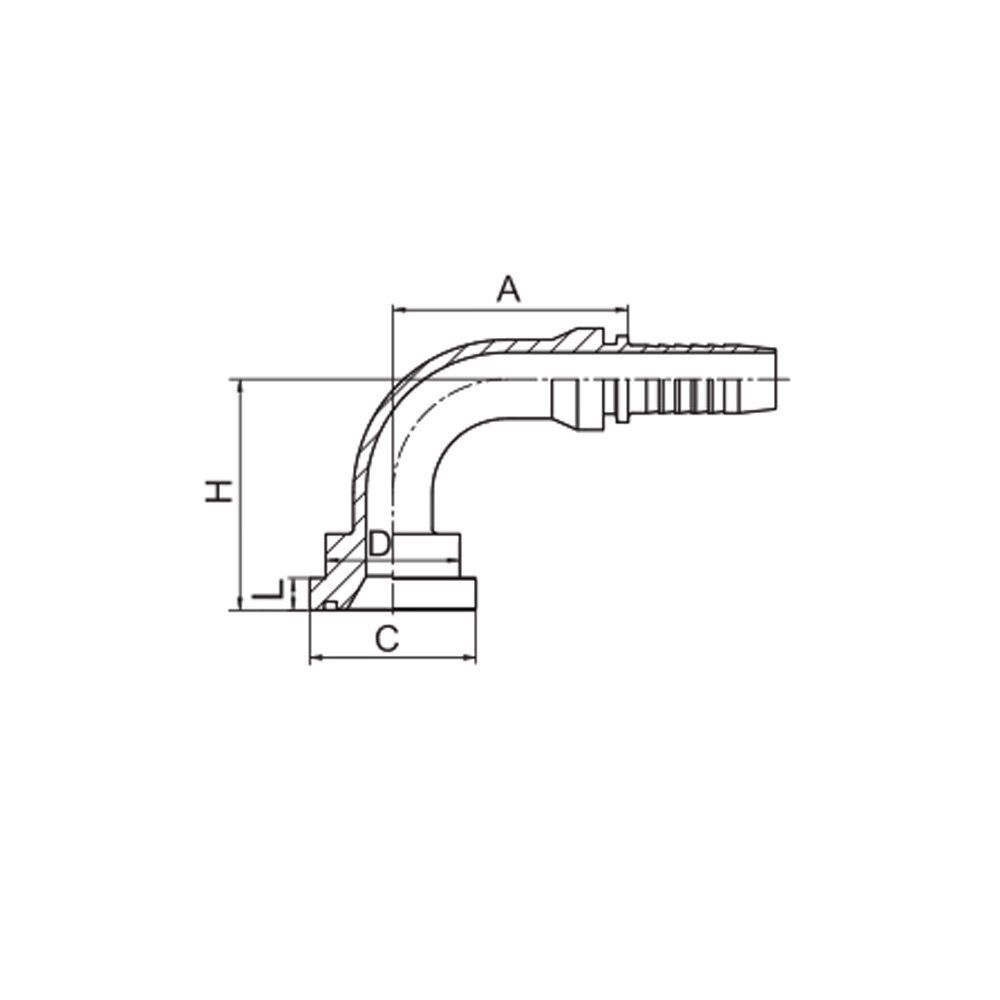

90° SAE FLANGE 6000PSI ISO 12151-3-SAE J516
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | D | H | L | ||
| 87691-08-08 | 1/2″ | 12 | 08 | 41 | 31.7 | 24 | 48 | 7.75 |
| 87691-12-10 | 3/4″ | 16 | 10 | 56 | 41.3 | 32 | 56.5 | 8.76 |
| 87691-12-12 | 3/4″ | 20 | 12 | 65.5 | 41.3 | 32 | 66 | 8.76 |
| 87691-16-12 | 1″ | 20 | 12 | 65.5 | 47.6 | 38 | 69 | 9.53 |
| 87691-16-16 | 1″ | 25 | 16 | 76.7 | 47.6 | 38 | 74.5 | 9.53 |
| 87691-16-20 | 1” | 32 | 20 | 91.5 | 47.6 | 38 | 85.5 | 9.53 |
| 87691-20-16 | 1.1/4″ | 25 | 16 | 76.7 | 54.0 | 44 | 78.5 | 10.29 |
| 87691-20-20 | 1.1/4″ | 32 | 20 | 91.5 | 54.0 | 44 | 89.5 | 10.29 |
| 87691-24-20 | 1.1/2″ | 32 | 20 | 91.5 | 63.5 | 51 | 94.5 | 12.57 |
| 87691-24-24 | 1.1/2″ | 40 | 24 | 109.4 | 63.5 | 51 | 108 | 12.57 |
| 87691-32-24 | 2″ | 40 | 24 | 109.4 | 79.4 | 67 | 116 | 12.57 |
| 87691-32-32 | 2″ | 50 | 32 | 131.8 | 79.4 | 67 | 136.3 | 12.57 |
