Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 22642D-xx-xxSM.

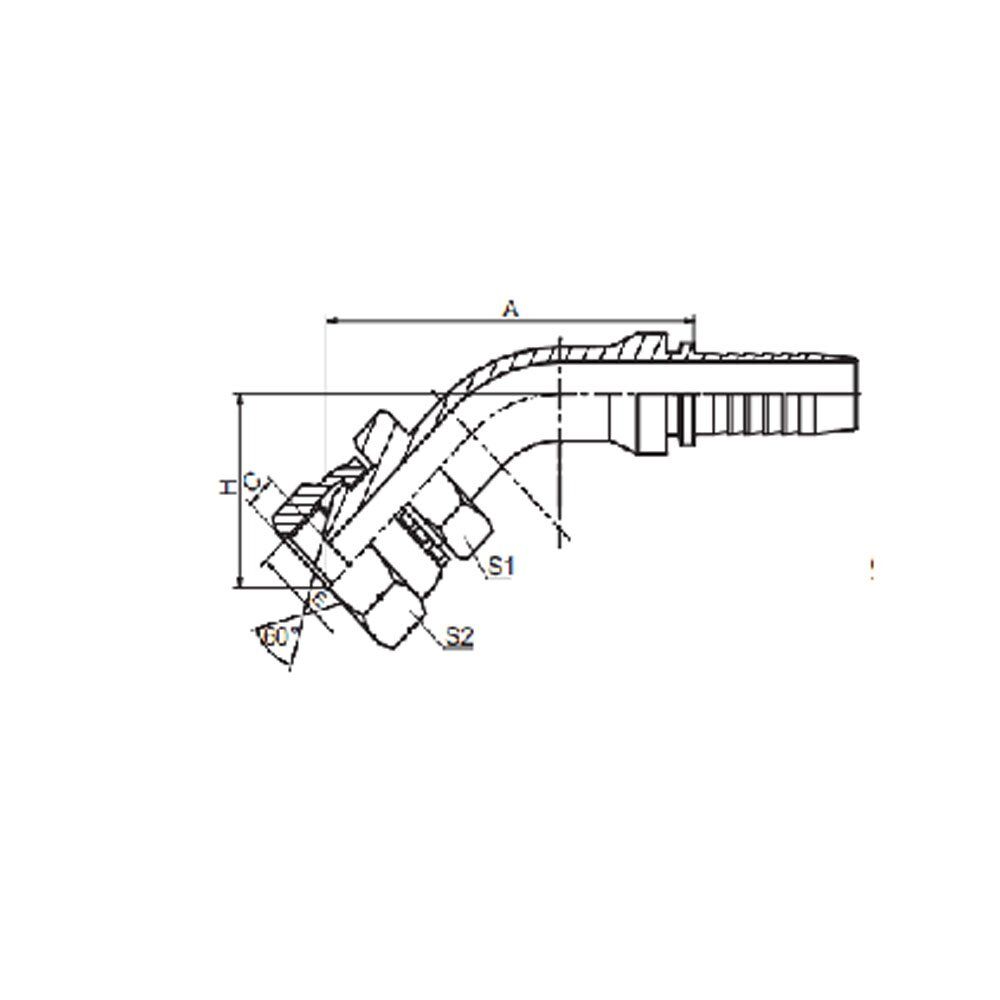

90°BSP FEMALE 60° CONE DOUBLE HEXAGON
| PART NO. | THREAD | HOSE BORE | A | C | H | S1 | S2 | |
| DN | DASH | |||||||
| 22641D-04-04SM | G1/4″X19 | 6 | 04 | 44.6 | 5.5 | 25.5 | 14 | 19 |
| 22641D-06-06SM | G3/8″X19 | 10 | 06 | 51.6 | 6.3 | 26.9 | 17 | 22 |
| 22641D-08-08SM | G1/2″X14 | 12 | 08 | 66 | 7.5 | 31 | 22 | 27 |
| 22641D-10-08SM | G5/8″X14 | 12 | 08 | 66 | 9.5 | 31 | 22 | 30 |
| 22641D-12-08SM | G3/4″X14 | 12 | 08 | 66 | 10.9 | 31.7 | 27 | 32 |
| 22641D-12-12SM | G3/4″X14 | 20 | 12 | 85.5 | 10.9 | 37.4 | 27 | 32 |
| 22641D-16-16SM | G1″X11 | 25 | 16 | 94.7 | 11.7 | 40.5 | 32 | 41 |
