Description
Bring the Workshop to the Job Site

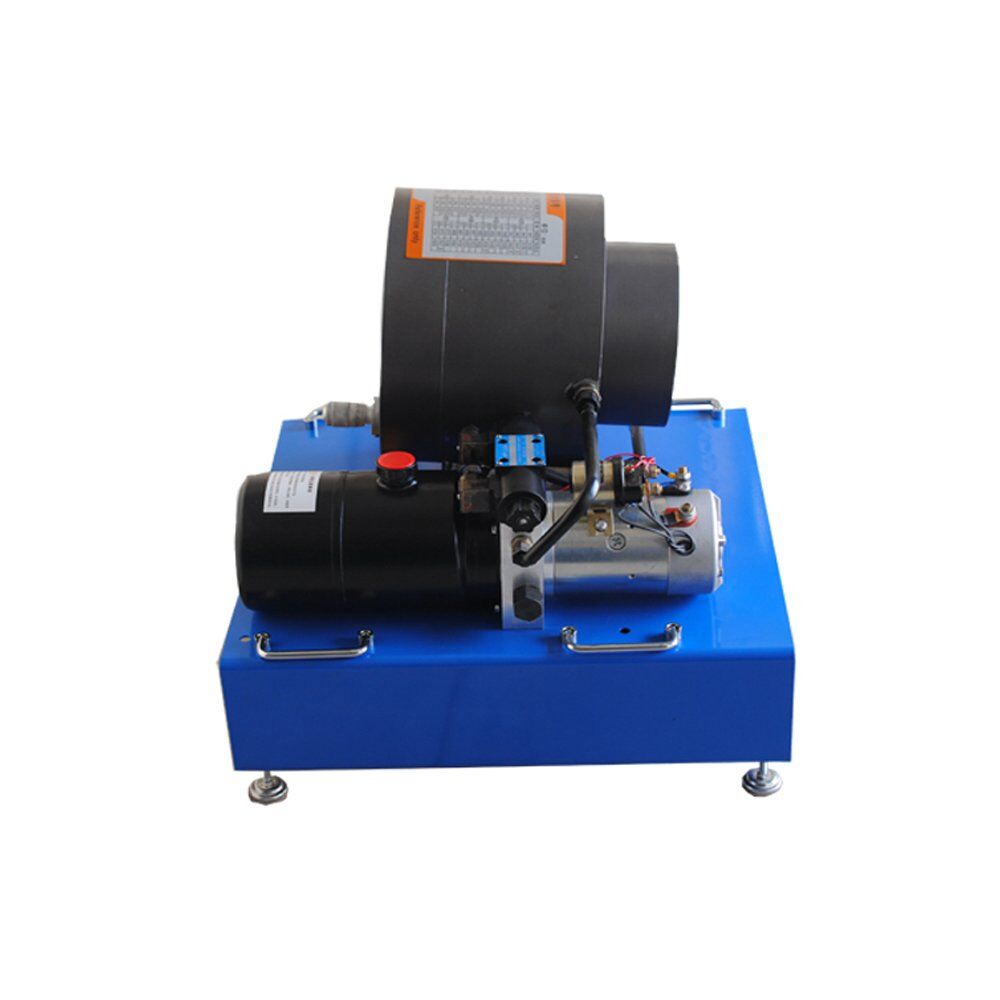

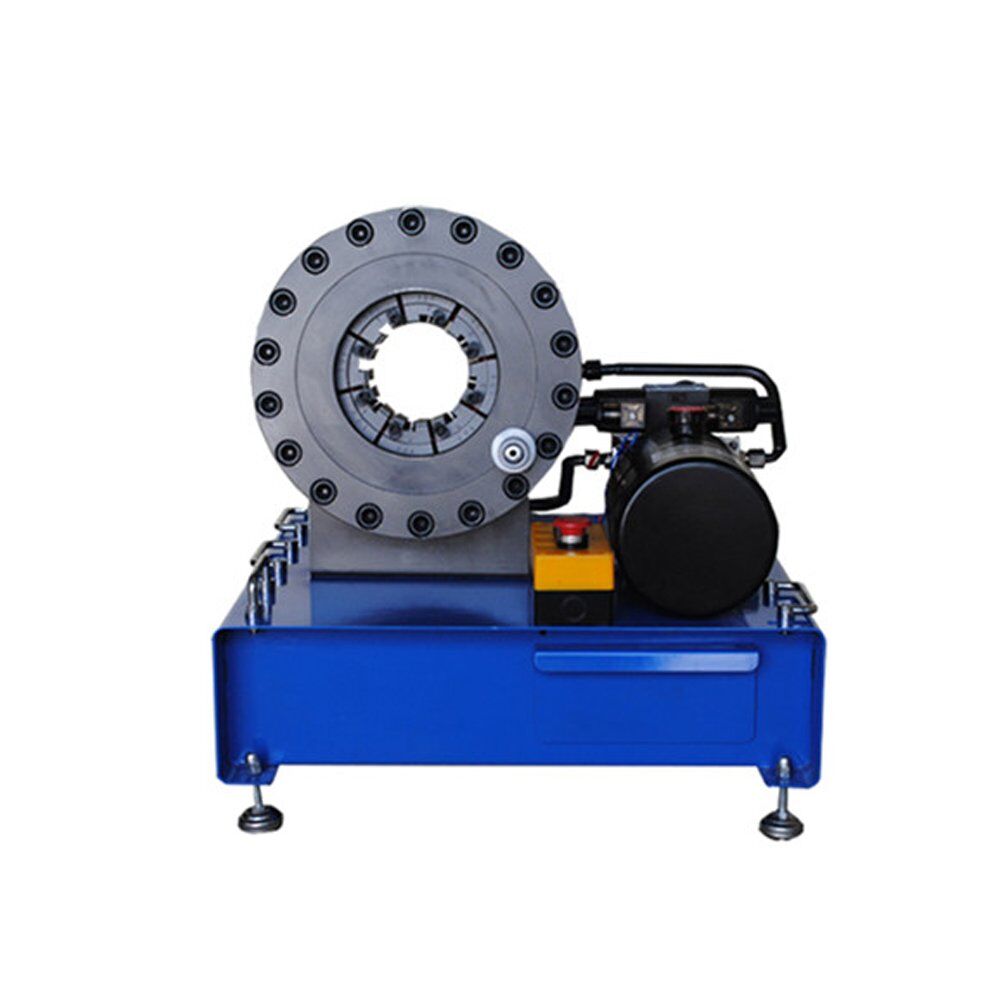

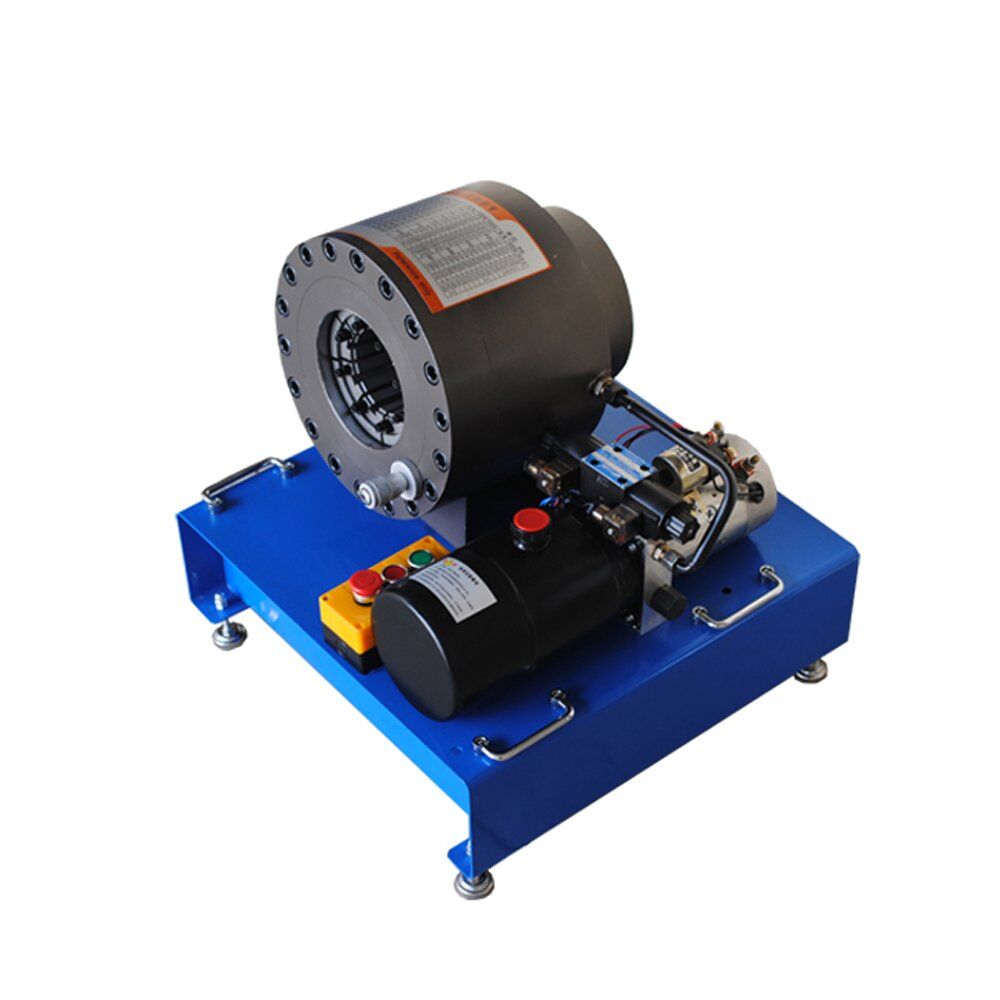

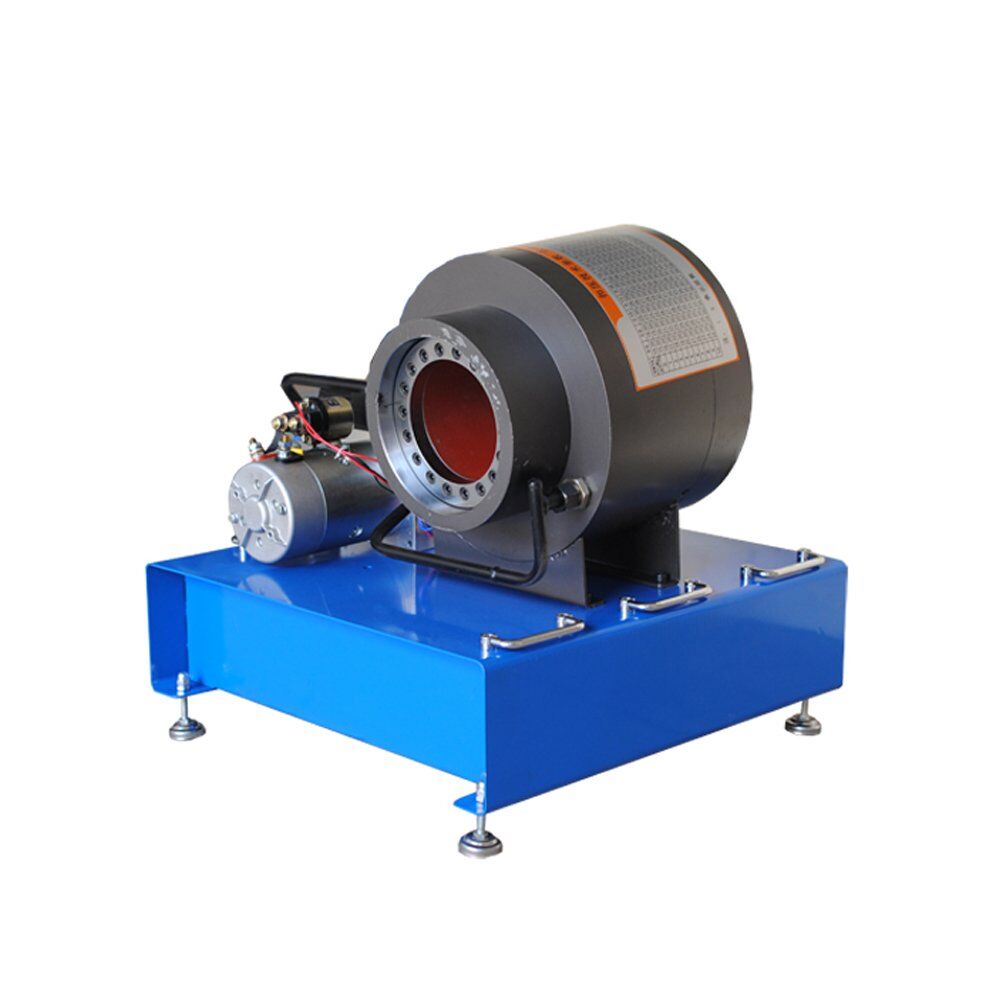

When heavy construction machinery blows a hydraulic hose in the middle of a remote job site, towing it back to the shop is not an option. Every minute of downtime costs money. The CYT-51CZ Mobile Hydraulic Hose Crimping Machine is engineered to solve this exact problem. By bringing immense crimping power directly to the field, your mobile service team can fabricate brand-new, factory-spec hose assemblies right next to the broken machine.
12V/24V Battery Powered: No Generator Needed
True mobility means not relying on a power grid. The CYT-51CZ is equipped with a specialized 3.6kw DC motor (12V or 24V options available). This allows operators to power the crimper directly from a service van, pickup truck, or the dead equipment’s own battery using heavy-duty jumper cables. Say goodbye to hauling loud, bulky, and expensive AC generators to the site.
Unmatched 600-Ton Force in a Compact Body
Mobile crimpers often sacrifice power for portability—but not the CYT-51CZ. This heavy-duty unit generates a massive 600 tons of crimping force with a systemic pressure of 30Mpa. With a maximum opening diameter of 114mm, it effortlessly bites down on high-pressure multi-spiral hoses ranging from 6mm up to 51mm (2″). Whether you are repairing agricultural tractors, forestry equipment, or mining excavators, this machine has the muscle to get the job done.
Rugged, Simple, and Ultra-Precise
Working outdoors means dealing with dirt, weather, and rough handling. The machine features a straightforward, weather-resistant push-button control panel, minimizing the risk of electronic failure in the field. To ensure perfect crimps, it utilizes a highly accurate dial interface that guarantees 0.01mm crimping precision. Furthermore, the welded side handles make it manageable for two technicians to lift and position the 170 KG machine wherever it’s needed.
