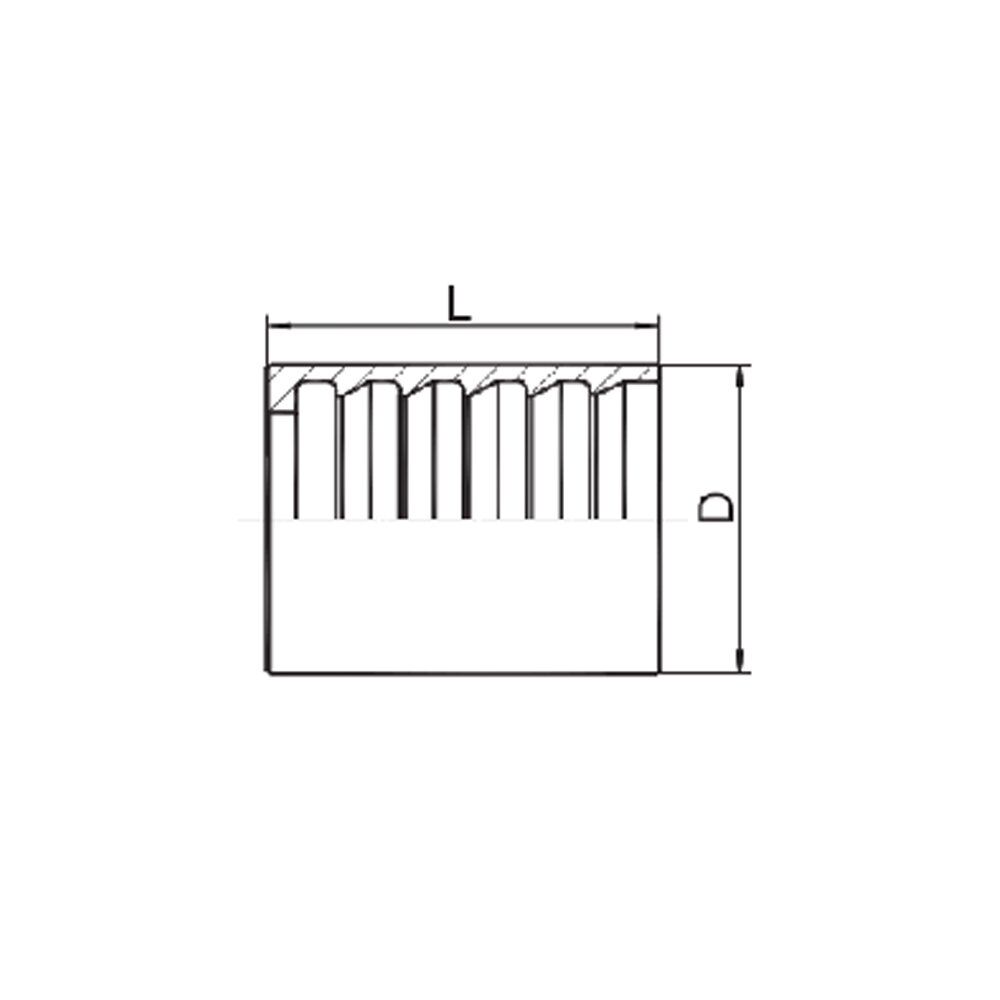

FERRULE FOR SAE100R1AT/DIN2022 1ST HOSE
| PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | D | L | |
| 00110-04 | 6 | 04 | 20.6 | 30 |
| 00110-05 | 8 | 05 | 20.8 | 31 |
| 00110-06 | 10 | 06 | 23.3 | 32 |
| 00110-08 | 12 | 08 | 27 | 34 |
| 00110-10 | 16 | 10 | 32 | 37 |
| 00110-12 | 20 | 12 | 34 | 43 |
| 00110-16 | 25 | 16 | 42.6 | 50 |
| 00110-20 | 32 | 20 | 52 | 59 |
| 00110-24 | 40 | 24 | 58 | 74 |
| 00110-32 | 50 | 32 | 72 | 78 |
