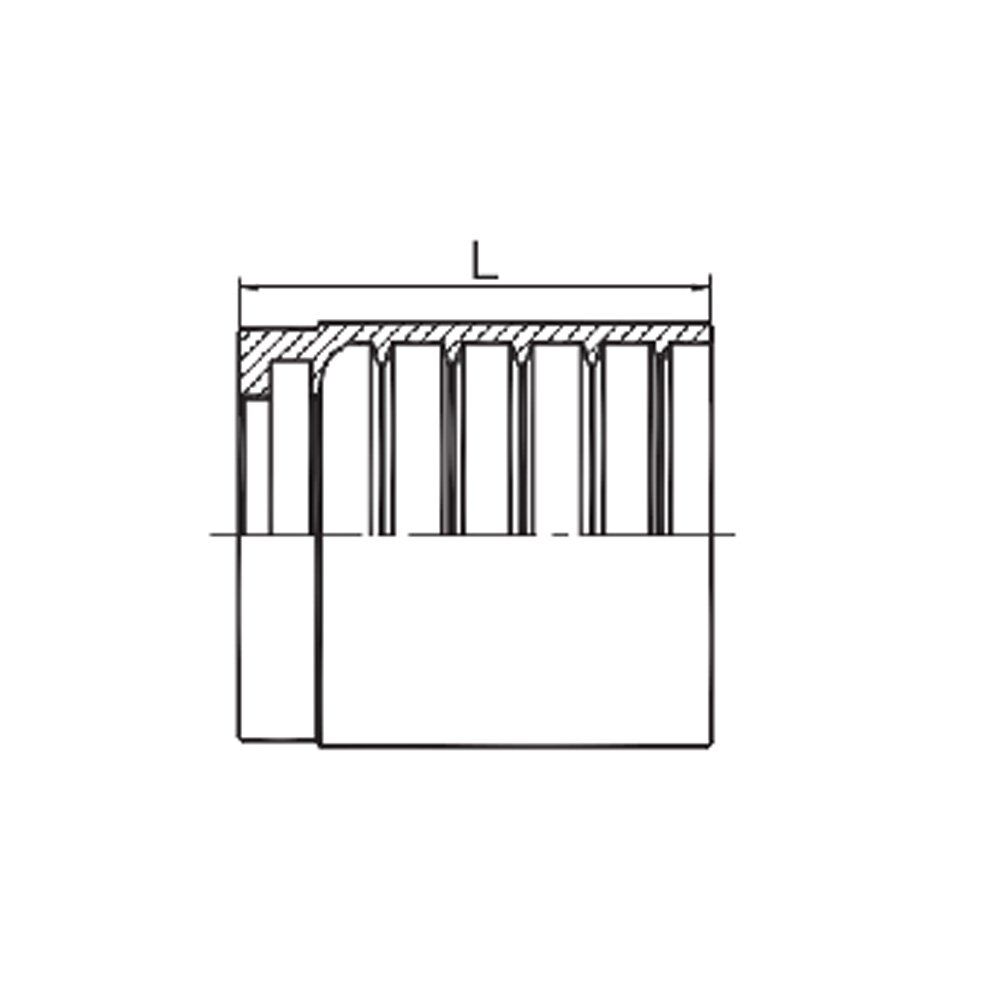

FERRULE FOR SAE100R2AT/DIN20022 2SN HOSE
| PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | D | L | |
| 03310-04 | 6 | 04 | 23.2 | 30 |
| 03310-05 | 8 | 05 | 24 | 30 |
| 03310-06 | 10 | 06 | 26.3 | 32 |
| 03310-08 | 12 | 08 | 29.9 | 34 |
| 03310-10 | 16 | 10 | 33.2 | 36 |
| 03310-12 | 20 | 12 | 37.8 | 42 |
| 03310-16 | 25 | 16 | 46.9 | 50 |
| 03310-20 | 32 | 20 | 59 | 59 |
| 03310-24 | 40 | 24 | 67 | 72 |
| 03310-32 | 50 | 32 | 80 | 75 |
