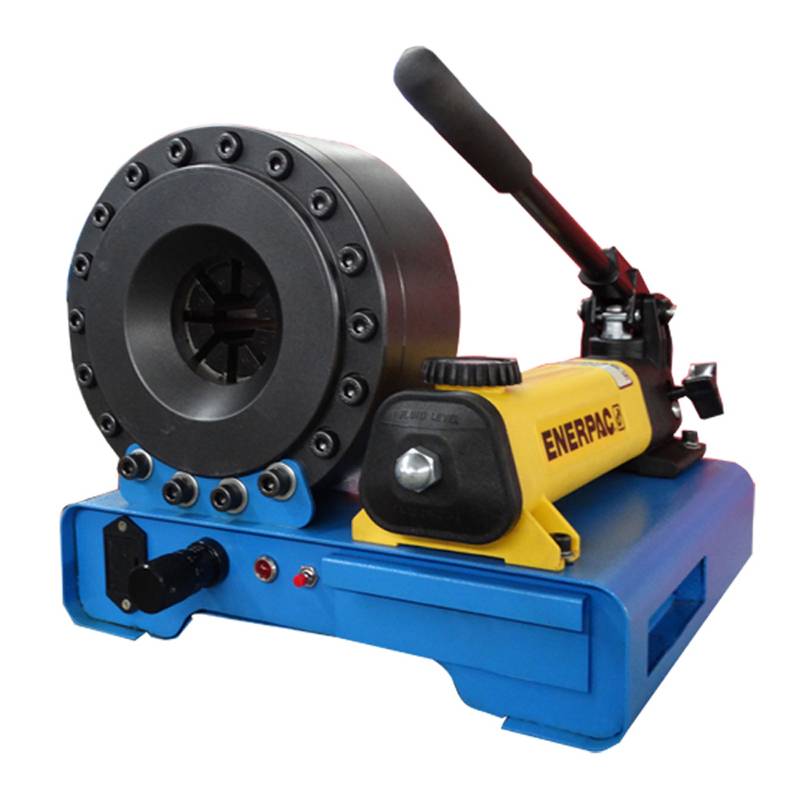

Portable P16hp 1inch manual hose crimper

Portable P16hp 1inch manual hose crimper

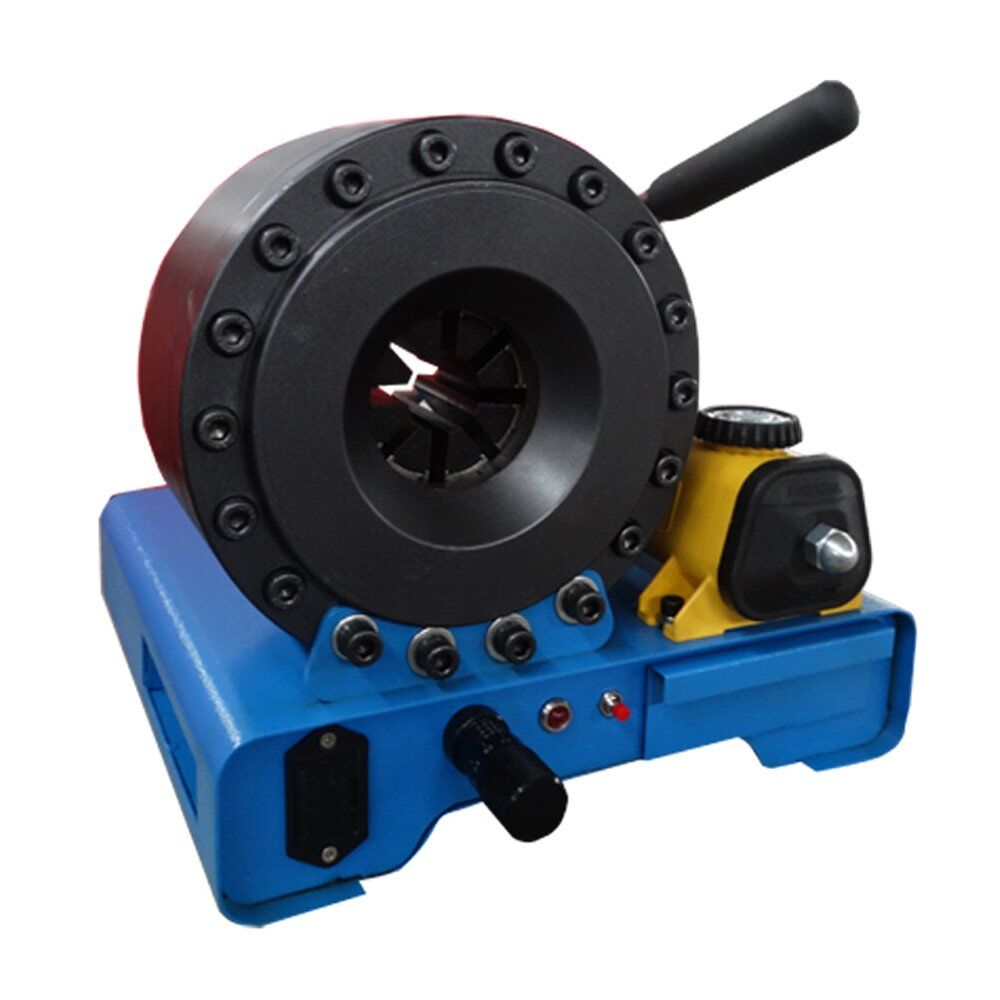

Portable P16hp 1inch manual hose crimper - Image 2
Category Tags , , , ,

P16HP manual hydraulic hose crimper is mainly to crimp 1/4” to 1” 2SN hose. Except this, it can also press other types of hoses such as air conditioning hose, PTFE hose, rubber air hose and so on.

It is only 24.5kgs. Light weight and compact in size allows it to be carried to any location. This hand-operated portable machine works even in places where electricity or compressed air are not available.

The hand pump is ENERPAC pump and largely increases the whole performance of P16HP hose crimping machine , and make your work smooth.

Additional information

H.C. Material

Forge Steel (Cr40)
Crimping Range

3-39mm
Max. Opening

+20mm
Opening Without Dies

51mm
Max. Hydraulic Hose

1inch, 2SN
Master Die Length

65mm
System Pressure

31.5Mpa
Max. Crimping Force

955KN
Motor Power

Hand pump
Control

Manual
Weight

28KG
Dimension

320*350*290mm
ASK FOR A QUOE

Product Video

It includes 7 sets of dies and a 1/8inch die can be customized.

Product Details:

Product Details of P16hp manual hose crimper:

1) Hand operated hydraulic hose crimper

*The hand-operated hydraulic hose crimper has great advantages for mobile mechanical maintenance and outdoor situations with no power supply.

*The crimper is small in size and weight, portable, and very easy to move.

*There is no need for a power supply and thus few environmental constraints.

*The customized hand-operated hydraulic pump provides stable crimp force.

2) Material

The oil cylinder cover, oil tank, and piston rod are made of 40 chromium, which is high pressure resistant with great impact-absorbing capacity and improves the durability of the oil tank and piston rod.

3) Hydraulic conduction system

With the steel pipe connection, the hydraulic conduction system is oil-tight with little heat and stable pressure conduction.

4) Die connection

Our crimping dies are connected through magnetism, which makes it convenient for assembly and disassembly, and the crimping is neat.

Description

Product Details of P16hp manual hose crimper:

1) Hand operated hydraulic hose crimper

*The hand-operated hydraulic hose crimper has great advantages for mobile mechanical maintenance and outdoor situations with no power supply.

*The crimper is small in size and weight, portable, and very easy to move.

*There is no need for a power supply and thus few environmental constraints.

*The customized hand-operated hydraulic pump provides stable crimp force.

2) Material

The oil cylinder cover, oil tank, and piston rod are made of 40 chromium, which is high pressure resistant with great impact-absorbing capacity and improves the durability of the oil tank and piston rod.

3) Hydraulic conduction system

With the steel pipe connection, the hydraulic conduction system is oil-tight with little heat and stable pressure conduction.

4) Die connection

Our crimping dies are connected through magnetism, which makes it convenient for assembly and disassembly, and the crimping is neat.

Additional information

H.C. Material

Forge Steel (Cr40)
Crimping Range

3-39mm
Max. Opening

+20mm
Opening Without Dies

51mm
Max. Hydraulic Hose

1inch, 2SN
Master Die Length

65mm
System Pressure

31.5Mpa
Max. Crimping Force

955KN
Motor Power

Hand pump
Control

Manual
Weight

28KG
Dimension

320*350*290mm
