Selection of the proper Hydraulic hose for the application is essential to the proper operation and safe use of the hose and related equipment. In adequate to selection of the hose for your application can result in hose leakage , bursting or other failure,which can cause serious bodily injury or property damage from spraying fluids or flying projectiles. Therefore when choosing hydraulic hose , we should consider below factors:
-Hose Size , -Hose Length , -Hose Fittings , -Fluid Conveyed , -Bends , – Temperature ,
-Hose pressure , -Static Head Pressure , -Installation Design
Main Application: Low -medium pressure lines , including mobile , machine tool and agricultural application , using petroleum or water-based hydraulic fluids.
Application Specifications: DIN EN853 1ST SAE100 R1AT
Temperature Range : -40℃ to 100℃ (-40℉ to 212℉)

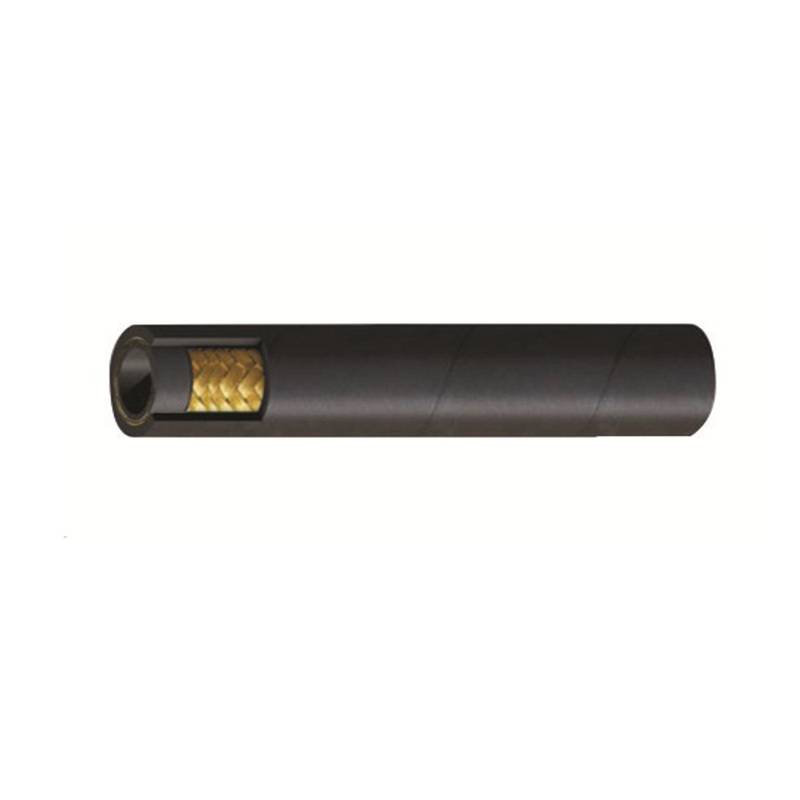

Construction Detail :
Inner Tube : Oil resistant synthetic rubber
Reinforcement : One braid of high-tensile steel wire
Cover : Environment resistant synthetic rubber (Wrap or Smooth cover )
| Size |
Hose I.D.
| W.D |
O.D Thickness of outer rubber
| MAX W.P. | MIN B.P. | MIN B.R. | Weight | |||||||
| mm | inch | Min | Max | Min | Max | Max | Min | Max | bar | psi | bar | psi | mm | kg |
| mm | mm | mm | mm | mm | mm | mm | ||||||||
| 5 | 3/16” | 4.6 | 5.4 | 9 | 10 | 13.5 | 0.8 | 1.5 | 250 | 3620 | 1000 | 14500 | 90 | 0.20 |
| 6 | 1/4” | 6.2 | 6.9 | 10.6 | 11.6 | 16.7 | 0.8 | 1.5 | 225 | 3260 | 900 | 13050 | 100 | 0.27 |
| 8 | 5/16” | 7.7 | 8.5 | 12.1 | 13.3 | 18.3 | 0.8 | 1.5 | 215 | 3110 | 860 | 12320 | 115 | 0.31 |
| 10 | 3/8” | 9.3 | 10.1 | 14.5 | 15.7 | 20.6 | 0.8 | 1.5 | 180 | 2610 | 720 | 10440 | 130 | 0.40 |
| 13 | 1/2” | 12.3 | 13.5 | 17.5 | 19 | 23.8 | 0.8 | 1.5 | 160 | 2320 | 640 | 9280 | 180 | 0.51 |
| 16 | 5/8” | 15.5 | 16.7 | 20.6 | 22.2 | 27 | 0.8 | 1.5 | 130 | 1880 | 520 | 7540 | 200 | 0.58 |
| 19 | 3/4” | 18.6 | 19.8 | 24.6 | 26.2 | 31 | 0.8 | 1.5 | 105 | 1520 | 420 | 6090 | 240 | 0.70 |
| 25 | 1” | 25 | 26.4 | 32.5 | 34.1 | 39 | 0.8 | 1.5 | 88 | 1270 | 352 | 5070 | 300 | 1.00 |
| 32 | 1 1/4” | 31.4 | 33 | 39.3 | 41.7 | 47.5 | 1.0 | 2.0 | 63 | 910 | 250 | 3620 | 420 | 1.25 |
| 38 | 1 1/2” | 37.7 | 39.3 | 45.6 | 48 | 54 | 1.3 | 2.5 | 50 | 720 | 200 | 2900 | 500 | 1.52 |
| 51 | 2” | 50.4 | 52 | 58.7 | 61.7 | 68.2 | 1.3 | 2.5 | 40 | 580 | 160 | 2320 | 630 | 2.15 |
