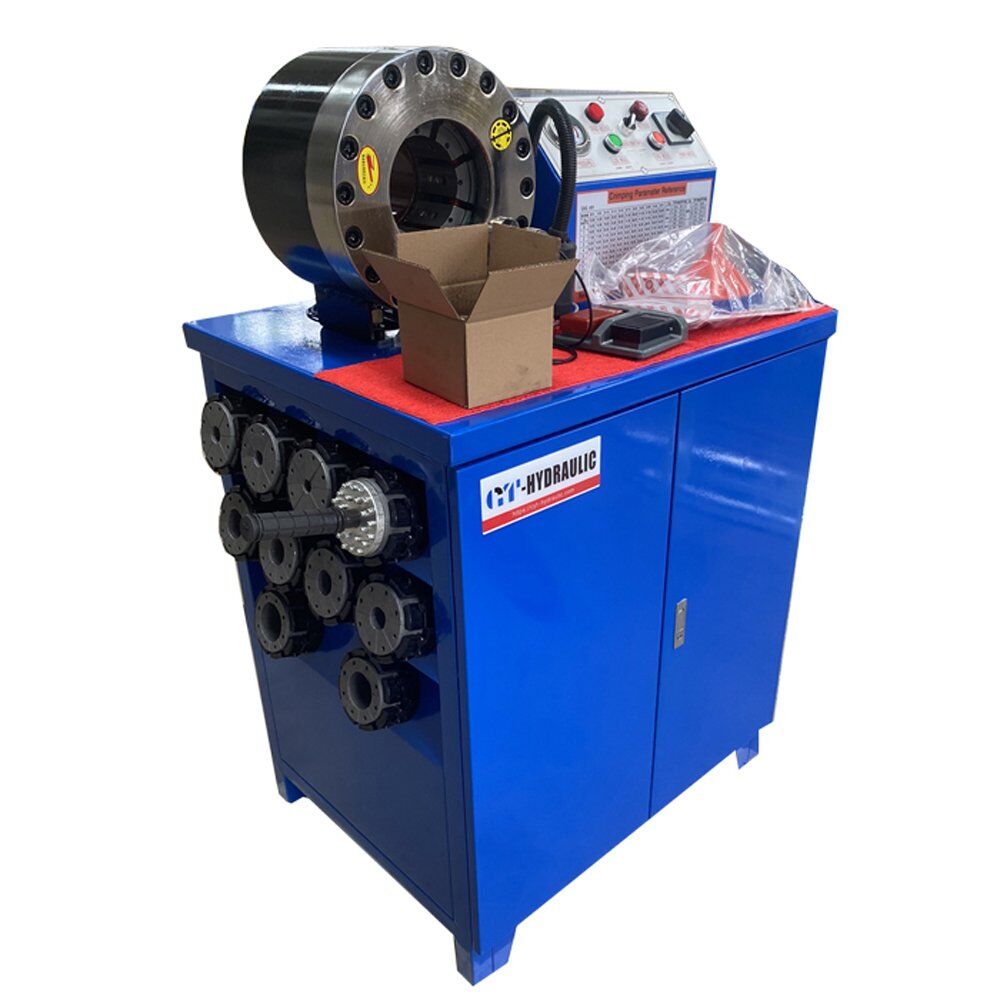

51BY hydraulic hose crimping machine is mainly to crimp 1/4″ to 2″ 4SP hose. If customer needs smaller dies, we can also customize according to the customers’ request.
| Crimping Range | 1/4" to 2" |
|---|---|
| Quantity of dies | 10sets |
| Accuracy | 0.01mm |
| System Pressure | 31.5Mpa |
| Motor Power | 3kw |
| Standard Voltage | Customized |
| Opening Without Dies | 114mm |
| Max. Opening | +/-24mm |
| Dimension | 860*640*1300 mm |
| Weight | 310KG |
51BY hydraulic hose crimping machine is mainly to crimp hydraulic hose, and it also can crimp brake hose, steel pipe and so on. It is with quick change dies tool and improve working efficiency and save your time.
