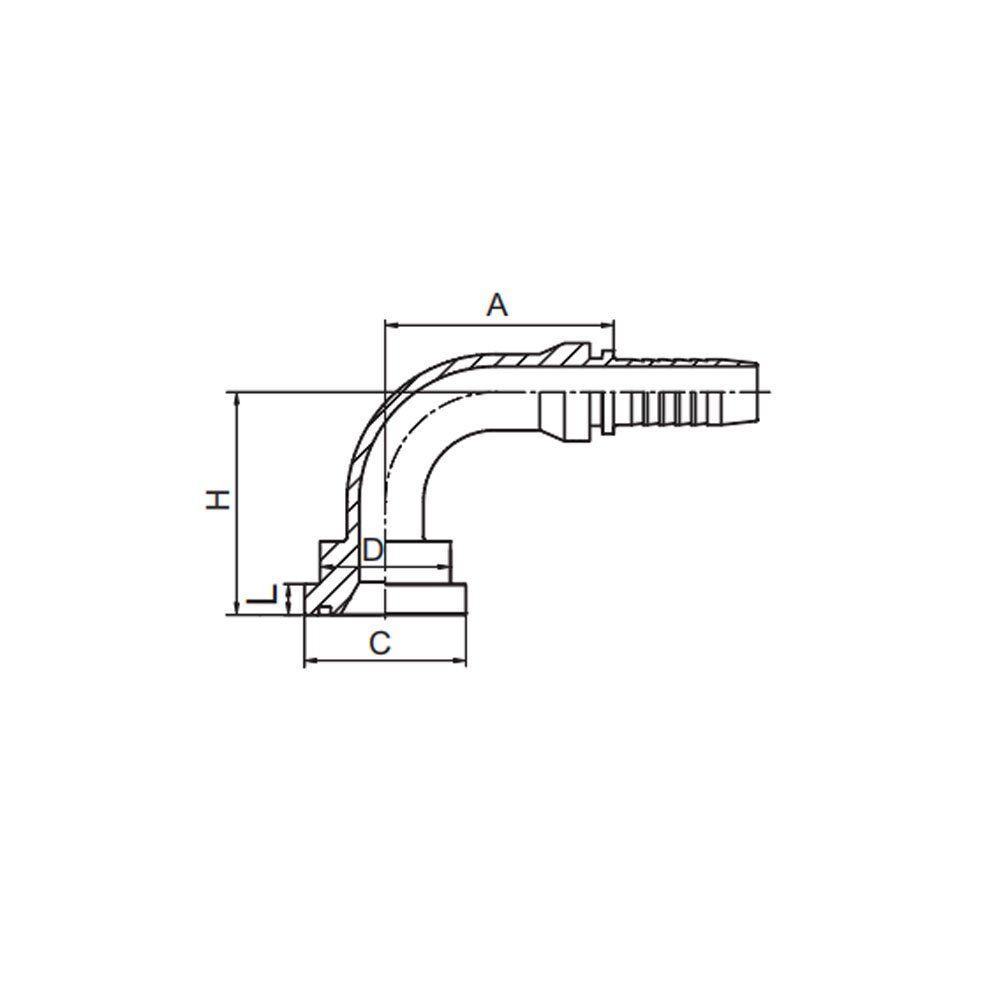

90° SAE FLANGE 3000PSI
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | D | H | L | ||
| 87391-12-12（H90) | 3/4″ | 20 | 12 | 65.5 | 38.1 | 32 | 90 | 6.73 |
| 87391-12-12（H100) | 3/4″ | 20 | 12 | 65.5 | 38.1 | 32 | 100 | 6.73 |
| 87391-12-12（H127) | 3/4″ | 20 | 12 | 65.5 | 38.1 | 32 | 127 | 6.73 |
| 87391-12-12（H150) | 3/4″ | 20 | 12 | 65.5 | 38.1 | 32 | 150 | 6.73 |
| 87391-16-16（H100) | 1″ | 25 | 16 | 76.7 | 44.4 | 38 | 100 | 8 |
| 87391-16-16（H127) | 1″ | 25 | 16 | 76.7 | 44.4 | 38 | 127 | 8 |
| 87391-16-16（H150) | 1″ | 25 | 16 | 76.7 | 44.4 | 38 | 150 | 8 |
| 87391-20-20（H100) | 1.1/4″ | 32 | 20 | 91.5 | 50.8 | 43 | 100 | 8 |
| 87391-20-20（H127) | 1.1/4″ | 32 | 20 | 91.5 | 50.8 | 43 | 127 | 8 |
| 87391-20-20（H150) | 1.1/4″ | 32 | 20 | 91.5 | 50.8 | 43 | 150 | 8 |
| 87391-24-24（H127) | 1.1/2″ | 40 | 24 | 109.4 | 60.3 | 50 | 127 | 8 |
