Main Application: For use with petroleum-base hydraulic fluids and water base hydraulic fluids.
Application Specifications: SAE100 R5
Temperature Range : -40℃ to 100℃ (-40℉ to 212℉)

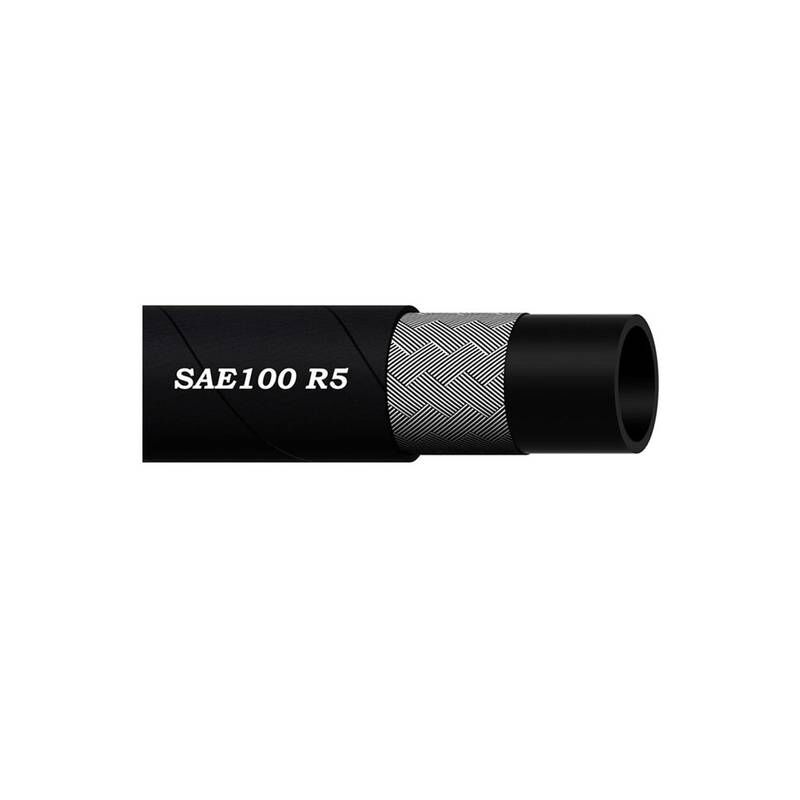

Construction Detail :
Inner Tube : Oil and fuel resistant synthetic rubber
Reinforcement : One high tensile steel wire braid
Cover : Impregnation of the outer textile braid with environment resistant synthetic rubber
| I.D | O.D | MAX W.P. | MIN B.P. | MIN B.R. | Weight | ||
| inch | Max | bar | psi | bar | psi | mm | kg |
| mm | |||||||
| 3/16” | 13.7 | 207 | 3000 | 827 | 12000 | 76 | 0.24 |
| 1/4” | 15.3 | 207 | 3000 | 827 | 12000 | 86 | 0.29 |
| 5/16” | 17.6 | 155 | 2250 | 620 | 9000 | 102 | 0.36 |
| 13/32” | 20.0 | 138 | 2000 | 552 | 8000 | 117 | 0.48 |
| 1/2” | 24.0 | 121 | 1750 | 483 | 7000 | 140 | 0.55 |
| 5/8” | 28.0 | 103 | 1500 | 414 | 6000 | 165 | 0.65 |
| 7/8” | 32.2 | 55 | 800 | 221 | 3200 | 187 | 0.69 |
| 1-1/8” | 38.9 | 43 | 625 | 172 | 2500 | 229 | 0.84 |
| 1-3/8” | 45.2 | 34 | 500 | 138 | 2000 | 267 | 1.03 |
| 1-13/16” | 57.6 | 24 | 350 | 97 | 1400 | 337 | 1.32 |
| 2-3/8” | 74.2 | 24 | 350 | 97 | 1400 | 610 | 2.96 |
| 3” | 91.7 | 14 | 200 | 55 | 800 | 838 | 4.00 |
