SOCKET WELD HOSE FITTING

Category Hydraulic Connectors Tag 50011

Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 50012-xx-xx.

Additional information

Product Video

Product Details:

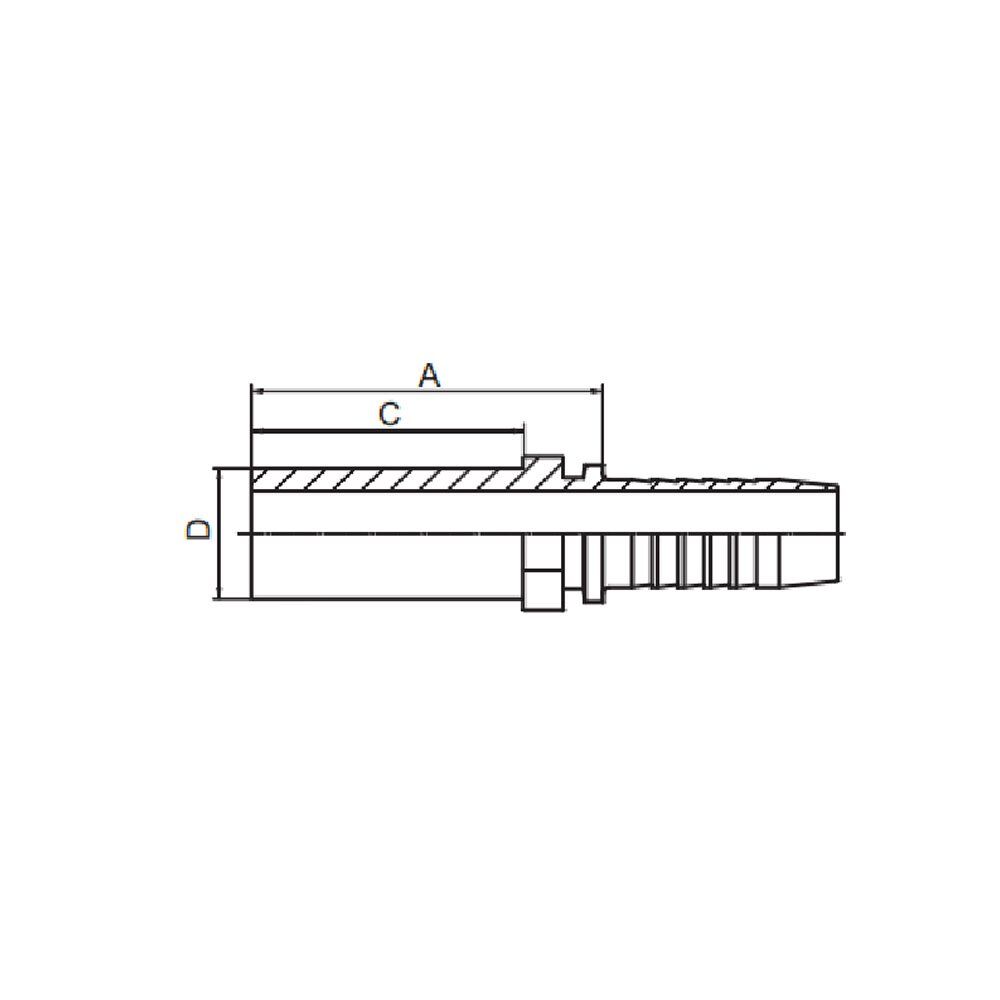

SOCKET WELD HOSE FITTING

PART NO.	TUBE O.D.	HOSE BORE		A	C	L.T.
PART NO.	TUBE O.D.	DN	DASH	A	C
50011-06-03	6	5	03	28.5	22
50011-06-04	6	6	04	29	22
50011-10-05	10	8	05	31	23
50011-10-06	10	10	06	32	23
50011-12-06	12	10	06	33.5	23
50011-12-08	12	12	08	33	23
50011-15-06	15	10	06	35.5	25
50011-15-08	15	12	08	35.5	25
50011-18-08	18	12	08	36.5	26
50011-18-10	18	16	10	41	26
50011-22-10	22	16	10	44	28
50011-22-12	22	20	12	44	28
50011-22-16	22	25	16	46	28
50011-28-16	28	25	16	47	30
50011-35-20	35	32	20	56	36
50011-42-24	42	40	24	62	40
50011-08-04	8	6	04	31	24	H.T.
50011-08-05	8	8	05	33	24
50011-08-06	8	10	06	33	24
50011-10-04	10	6	04	35	26
50011-12-04	12	6	04	34.5	26
50011-12-05	12	8	05	35.5	26
50011-14-06	14	10	06	39.5	29
50011-14-08	14	12	08	40	29
50011-14-12	14	20	12	45.5	29
50011-16-08	16	12	08	41	30
50011-16-10	16	16	10	45.5	30
50011-20-10	20	16	10	52.5	36
50011-20-12	20	20	12	52.5	36
50011-25-12	25	20	12	56	40
50011-25-16	25	25	16	57	40
50011-30-16	30	25	16	63	44
50011-30-20	30	32	20	64	44
50011-38-16	38	25	16	69	50
50011-38-20	38	32	20	70	50
